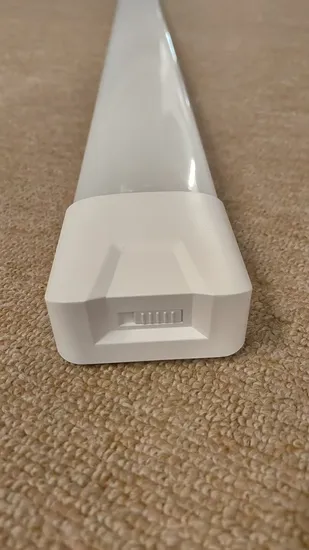

3CCT in One120cm 4FT Tube High Power LED Linear Batten Light

Basic Info.

Model NO.	LL-7231-60W
IP Rating	IP20
CCT	3000K, 4000K, 6000K
Driver	No-Isolated Driver
Lumen	100lm/W
Certificates	CE-EMC, CE-LVD, RoHS, En62471
Wattage	80W
CRI	>80
Sdcm	<6
Warranty	2~3 Years
Transport Package	1PCS/Box
Specification	Indoor light
Trademark	ALVA / OEM
Origin	China
HS Code	9405429000
Production Capacity	100000PCS/Month

Packaging & Delivery

Package Size125.00cm * 32.00cm * 32.00cm Package Gross Weight9.000kg

Product Description

Widely Applications: Living Rooms, office, supermarket, shopping mall, public area etc.

FAQ
Payment:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.

Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 30-40 working days

Warranty:
1,2,3,5 years warranty as you request

Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery;
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose
this way.
4. Your shipping agent or forwarder.

After-Sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free
3. Make you a happy ordering.

Quality Control:
100% of the lamps will be tested its quality reliability , and we will also test its;
temperature after 24 hours' lighting.Then after it is cool we again test 100% of the lamps to see if it still work well;
Each lamp should pass all these QC procedures before shipping to customer.

Delivery Detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive .
or by sea which takes about one month to arrive , depending on your actual requirements.

Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours;
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language;
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do OEM

Product Features
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

1. Aluminum back, high quality PC cover 2. Private Mode design 3. High Power,120cm (4ft) can make 80w 4.170-265V/ 110-137V,DOB driver 5.CRI>80 100LM/W 6. Widely Applications: Aisle,warehouse, office, supermarket, shopping mall, public area etc. 7. IP40 indoor only indoor, Insects and mosquitoes cannot fly into the lamp

Product Picture
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Product Parameter
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

Item No	Watts	Voltage (V)	PF	Surge	corol	Ra	(Lm/W)	IP	Dimension (mm)	QTY/CTN	Warranty
LL-7231-18W	18W	170-265V	0.5	2.5KV	3CCT	80	135Lm/W	IP20	600×72×H31	20	3years
LL-7231-36W	36W	170-265V	0.9	2.5KV	3CCT	80	135Lm/W	IP20	1200×72×H31	20	3years
LL-7231-60W	60W	170-265V	0.9	2.5KV	3CCT	80	135Lm/W	IP20	1500×72×H31	20	3years
LL-6031-30W	30W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	600×60×H31	30	2years
LL-6031-40W	40W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	600×60×H31	30	2years
LL-6031-60W	60W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	1200×60×H31	30	2years
LL-6031-80W	80W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	1200×60×H31	30	2years
LL-6031-30W B	30W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	600×60×H31	30	2years
LL-6031-40W B	40W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	600×60×H31	30	2years
LL-6031-60W B	60W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	1200×60×H31	30	2years
LL-6031-80W B	80W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	1200×60×H31	30	2years
LL-5431-30W	30W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	600×54×H31	30	2years
LL-5431-60W	60W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	1200×54×H31	30	2years
LL-5431-80W	80W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	1200×54×H31	30	2years
LL-5431-80W	80W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	1500×54×H31	30	2years

Item No	Watts	Voltage (V)	PF	Surge	corol	Ra	(Lm/W)	IP	Dimension (mm)	QTY/CTN	Warranty
LL-5632-30W	30W	170-265V	0.5	2.5KV	3CCT	80	100Lm/W	IP20	600×56×H32	30	3years
LL-5632-60W	60W	170-265V	0.5	2.5KV		80	100Lm/W	IP20	1200×56×H32	30	3years
LL-5732-30W	30W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	600×57×H32	30	3years
LL-5732-60W	60W	170-265V	0.5	2.5KV	6500K	80	100Lm/W	IP20	1200×57×H32	30	3years
LL-5842-30W	30W	175-265V	0.9	2.5KV	6500K	80	100Lm/W	IP20	600*58*H42	20	3years
LL-5842-60W	60W	175-265V	0.9	2.5KV	6500K	80	100Lm/W	IP20	1200*58*H42	20	3years
LL-7523-72W	72W	175-265V	0.5	2.5KV	6500K/ 4000K/ 3000K	80	100Lm/W	IP20	1200*75*H23	20	2years
LL-7523-72W	72W	85-265V	0.5	2.5KV		80	100Lm/W	IP20	1200*75*H23	20	2years
LL-6023-25W	25W	175-265V	0.5	2.5KV	6500K/ 4000K/ 3000K	80	100Lm/W	IP20	600×60×H23	20	2years
LL-6023-50W	50W	175-265V	0.5	2.5KV		80	100Lm/W	IP20	1185×60×H23	20	2years
LL-6023-80W	80W	175-265V	0.5	2.5KV		80	100Lm/W	IP20	1185*75*H30	20	2years
LL-7523-60W	60W	175-265V	0.5	2.5KV	6500K/ 4000K/ 3000K	80	100Lm/W	IP20	1200*75*H23	20	2years
LL-7523-80W	80W	175-265V	0.5	2.5KV		80	100Lm/W	IP20	1200*75*H23	20	2years
LL-7523-100W	100W	175-265V	0.5	2.5KV		80	100Lm/W	IP20	1200*85*H23	20	2years
LL-7523-120W	120W	175-265V	0.5	2.5KV		80	100Lm/W	IP20	1200*85*H23	20	2years
